Why your code doesn’t reproduce: Lessons learned from Meta-Psychology

Lucija Batinovic & Rickard Carlsson
Meta-Psychology
November 16, 2023

Agenda

  • Meta-Psychology computational reproducibility assessment
  • Common errors in computational reproducibility
  • Best practices for reproducible analyses
  • Discussion

Introduction to reproducibility

Transparency is a way out of the replication crisis

  • Yet, transparency only allows assessing reliability of research findings
  • Much focus has been given to replication (i.e., same analysis on new data) or robustness (i.e., new analyses same data)
  • Less attention to the most basic:
    • keeping data, analyses and reporting free from errors
  • Computational reproducibility checks are still rare

Meta-Psychology

  • Meta-Psychology pioneering in this area (#1 on TOP FACTOR)
  • Meta-Psychology is a community run journal
  • No APC (Diamond OA)
  • Publishes anything “meta” in psychology:
    • reviews, meta-analyses, commentaries, replications.
  • This talk is our 5 years experience with computational reproducibility at MP

Computational Reproducibility Check

Overview

  • 47 articles reproduced since journal’s inception in 2017
  • papers reproduced in 2022: 13
    • papers reproduced without any errors: 2 (with one being simulation study that required running code with fewer iterations)
    • errors in code: 8 (e.g., missing library calls, problems knitting reports, container-emulating packages, deprecated functions)
    • errors in reported results: 6 (e.g., wrong sample size, mean, plot output discrepancy, copy paste error, package update changed output)

Reproducibility Checklist

Common Errors in Computational Reproducibility

Most common errors we encountered happened because of:

  • Renaming files
  • Functions that were not working as they should
    • Deprecated functions
  • Hard-coding file paths
  • Older software versions

Functions Not Working

Common reasons why a function may not run properly:
  • Incorrect input arguments or parameters
  • Undefined or out-of-scope variables
  • Missing or outdated dependencies
# Example function call without loading library
my_function()

`Error in my_function() : could not find function "my_function"`
  • Deprecated functions
mydata <- read.csv("myfile.csv", header=TRUE)

`Warning message: In read.csv("myfile.csv", header = TRUE) :
   'read.csv' is deprecated: use 'read.csv2' instead`
  • Improper syntax or formatting errors
  • Logical errors or incorrect algorithmic design

Hard-Coding File Paths

  • hard-coding the absolute path to the file will cause issues when running the code in a different environment
# Hard-coded file path
data_file <- "C:/Users/username/Documents/data.csv"

# Load data from file
data <- read.csv(data_file)
  • relative paths allow reproducing code across computers and operating systems
# load data from a directory in the project
data_file <- "data/data.csv"

Software Versions

  • Not stating which version of the software was used can cause troubles while reproducing the results in different environments
Error: package 'dplyr' requires R version 4.0.0 or later
  • on the other hand, some packages may stop being maintained and newer versions of software can cause issues with functions
Warning: package 'plyr' was built under R version 3.6.3

Reasons for non-reproducible Results

Most common reasons for non-reproducible results

  • copy-paste errors
  • wrong rounding
  • simulation based analyses

Setting Seed for Simulations

  • bootstrapping confidence intervals
  • simulating datasets
head(rnorm(100, mean = 0, sd = 1))
[1] -0.86943091 -1.02729501  0.15032230 -1.48502696 -0.15172372  0.07539084
set.seed(1234)
head(rnorm(100, mean = 0, sd = 1))
[1] -1.2070657  0.2774292  1.0844412 -2.3456977  0.4291247  0.5060559

Wrong Rounding/Copy-Paste Errors

data <- iris
mean(iris$Sepal.Width)
[1] 3.057333
round(mean(iris$Sepal.Width))
[1] 3
round(mean(iris$Sepal.Width), 2)
[1] 3.06
data <- iris
# Hard-coded result
cat("The mean value is 5.")
The mean value is 5.
# Extracted from code
cat(paste0("The mean value is ", round(mean(iris$Sepal.Length), 2), "."))
The mean value is 5.84.

Best practices

Importance of structure

  • Psych-DS
  • creating projects allows using relative paths
  • projects can be easily sent to and managed by other people
  • hierarchical project structure makes the analysis process clearer for the third party
my_project/
├── README.txt
├── codebook.txt
├── data/
│   ├── raw/
│   │   ├── data_file_1.csv
│   │   ├── data_file_2.csv
│   │   └── ...
│   ├── processed/
│   │   ├── data_file_1_cleaned.csv
│   │   ├── data_file_2_cleaned.csv
│   │   └── ...
│   └── ...
├── docs/
│   ├── report.pdf
│   ├── manuscript.Rmd
│   └── ...
├── src/
│   ├── data_cleaning.R
│   ├── data_analysis.R
│   └── ...
└── ...

File naming conventions

  • consistency: keep capitalization consistent, as well as use of punctuation, avoid special characters
  • clarity: names should be descriptive and clear, even if it means it will be longer
  • chronology: names should indicate the correct order of steps

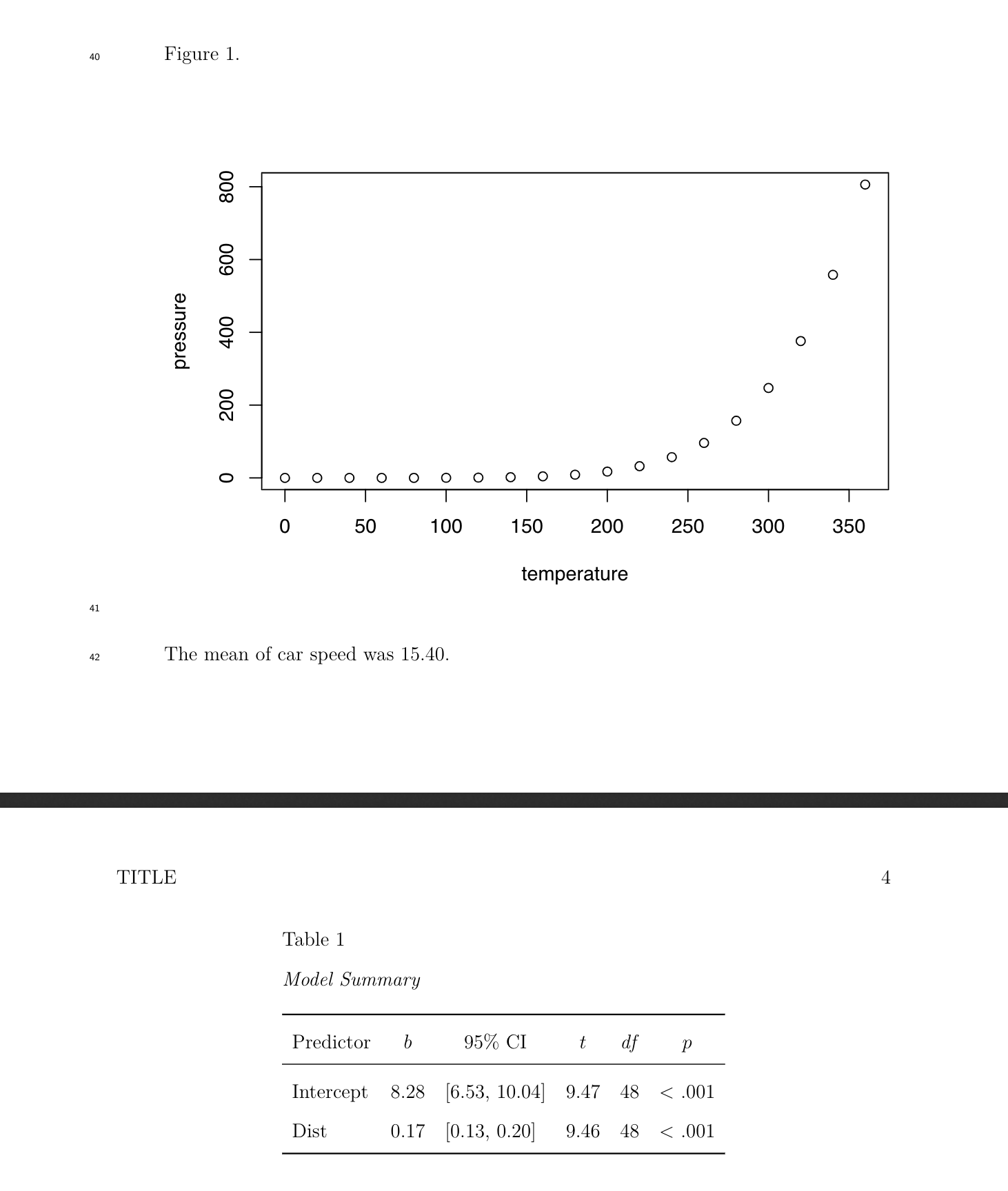

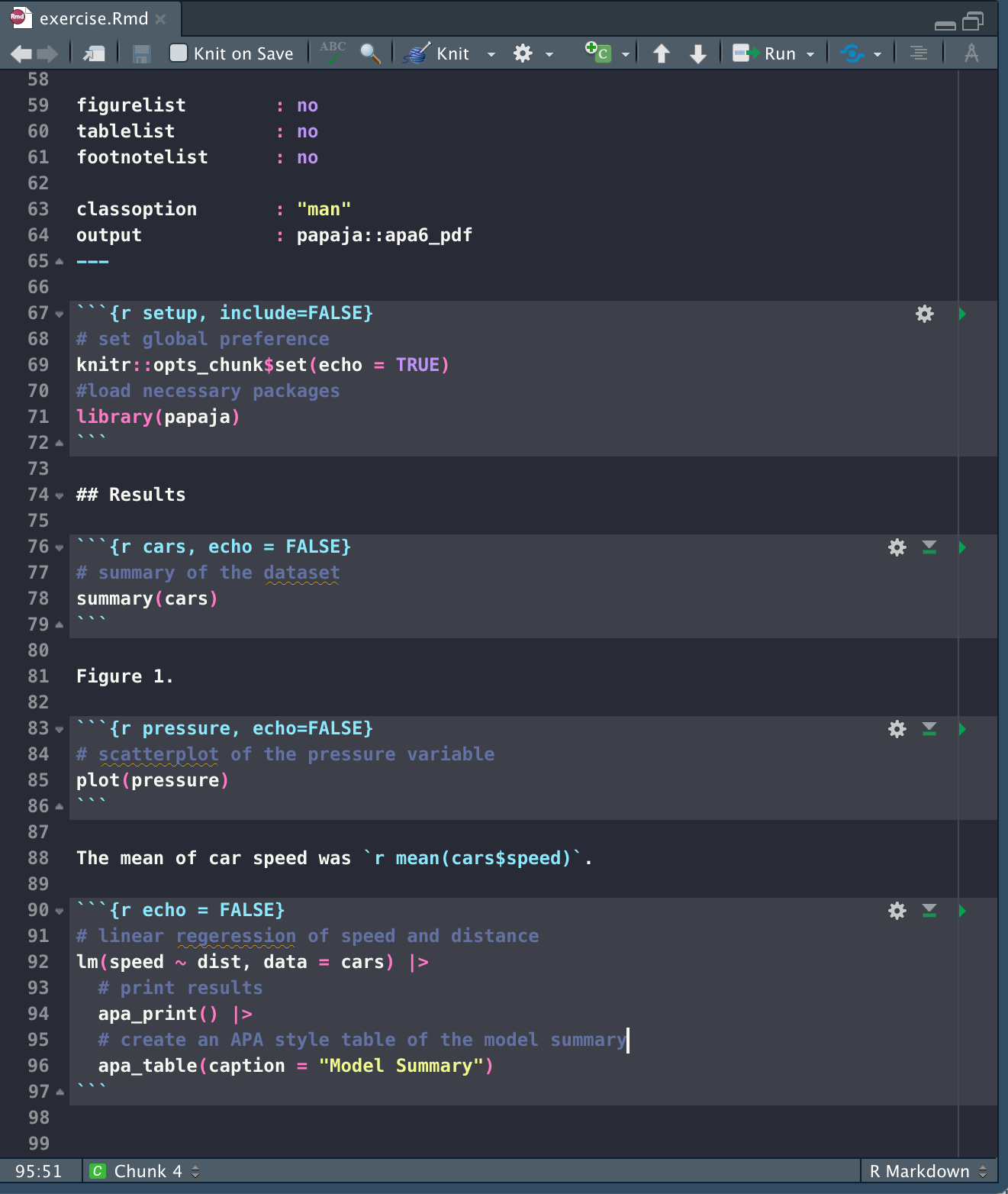

RMarkdown/Quarto

  • compiling reports that contain the code and results in one document allows a simpler workflow and minimizes errors caused by copy-pasting
  • papaja package in R

README and codebook files

README

  • Computing environment; package version and time necessary to compute (show reproducibility checklists)
  • Project description: A brief description of the project and its purpose.
  • Installation instructions: Step-by-step instructions on how to install and set up the project. This should include any dependencies or prerequisites required to run the project

Codebook

  • Overview of all variables: name and description of each variable
  • codebook
library(codebook)
new_codebook_rmd(codebook)

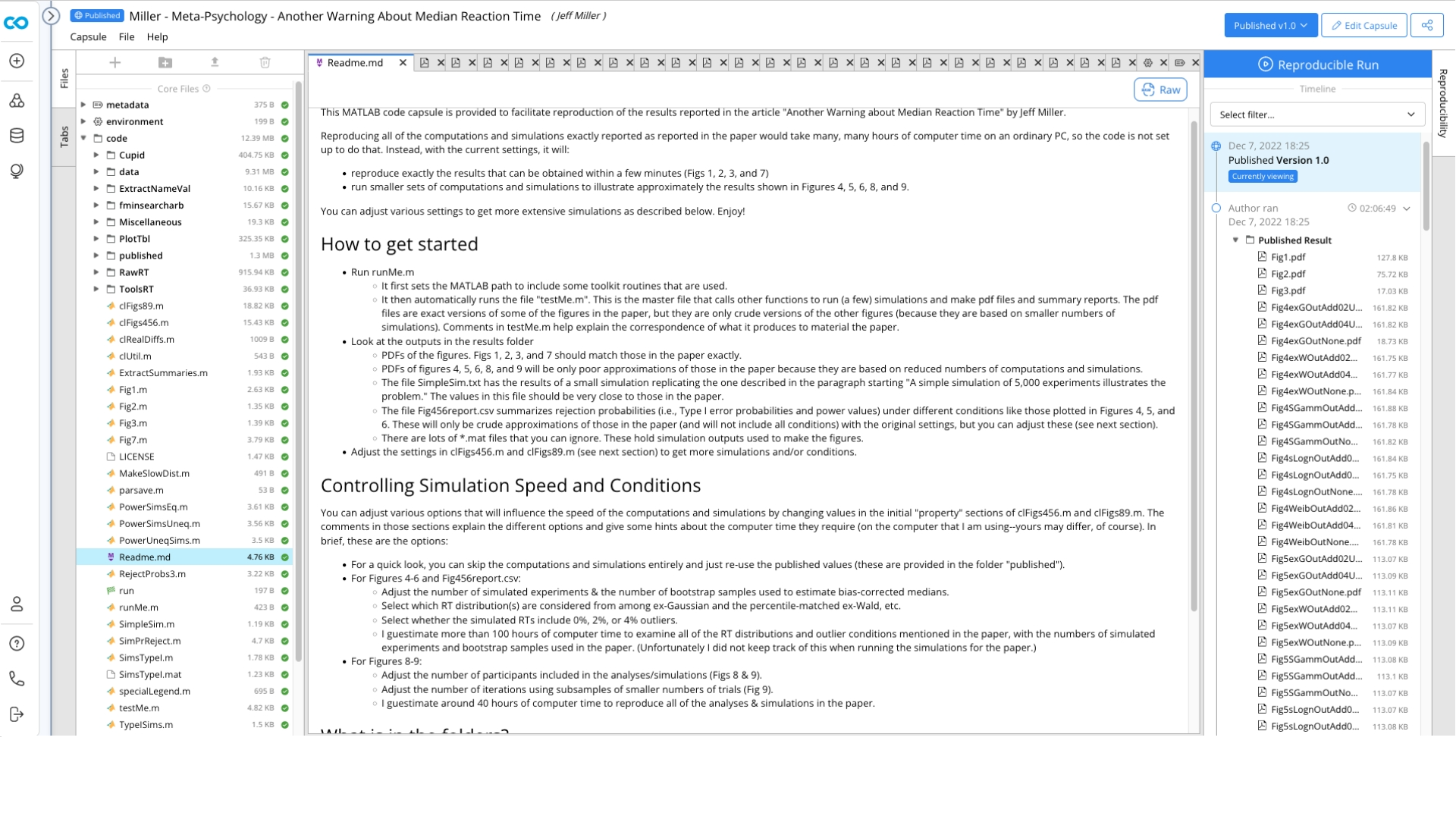

Containerization

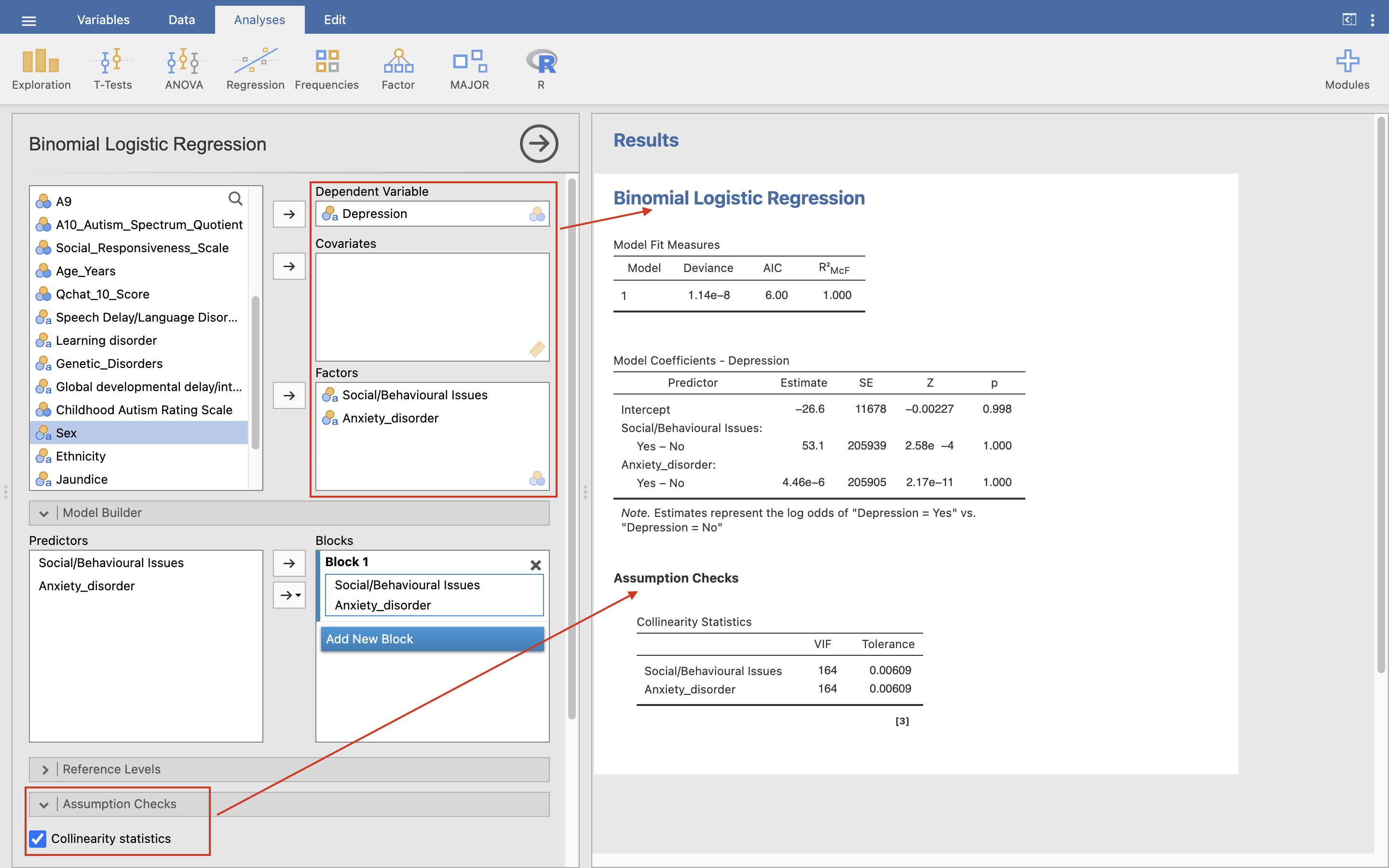

Point-and-click alternative

  • open source: JASP or JAMOVI
  • jamovi files can be saved with analyses and edited data in a transparent way *Note: although .omv (jamovi) files include datasets, always provide raw .tsv/.csv files separately

Power of AI

  • with the rise of ChatGPT and LLM-based apps accessible to public, there is no reason why provided materials cannot be well documented

Examples of use that can save time and promote reproducibility (ideas provided by ChatGPT):

Number Task Description
1 Drafting Detailed Documentation ChatGPT can assist in writing comprehensive documentation that covers all aspects of the code including installation, usage, and troubleshooting.
2 Generating README Files It can create README files that provide a clear overview of the project, setup instructions, and usage guidelines.
3 Preparing Installation Guides ChatGPT can write detailed installation guides to ensure users can recreate the necessary environment to run the code.
4 Automating Responses to Common Issues It can draft standard responses for common issues or questions for inclusion in an FAQ section.
5 Creating Example Code Snippets ChatGPT can generate code snippets to demonstrate the usage of different functions or classes.
6 Writing Test Scripts It can assist in writing test scripts to verify the functionality of different parts of the code.
7 Developing Code Annotations ChatGPT can help annotate code, providing explanations for complex sections and clarifying the logic behind certain decisions.
8 Assisting with Dependency Lists It can help compile and explain a list of dependencies, ensuring all necessary packages are included.
9 Formatting and Linting Code ChatGPT can offer guidance on code formatting and linting to ensure the code adheres to standard practices.
10 Creating Data Preprocessing Scripts For projects involving data, it can help write scripts for data cleaning and preprocessing.
11 Drafting Contribution Guidelines ChatGPT can formulate guidelines for how others can contribute to the project.
12 Version Control Guidance It can provide tips on using version control systems effectively for tracking changes and ensuring reproducibility.
13 Generating Virtual Environment Setup Instructions ChatGPT can guide the creation of instructions for setting up virtual environments.
14 Assisting with Continuous Integration Setup It can offer insights into setting up CI/CD pipelines for automated testing and consistency across environments.
15 Advising on Licensing Issues ChatGPT can provide information on different software licenses to help authors choose the right one for their code.

Discussion

Meta-Psychology
